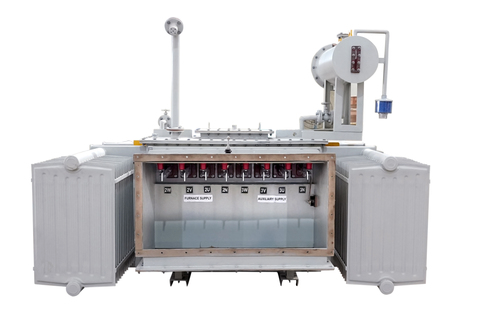

Electric Arc Furnace Transformer

Electric Arc Furnace Transformer

600000 INR/Unit

Product Details:

  • High Voltage Up to 33000 Volt (V)
  • Coil Material Copper Core
  • Rated Voltage Upto 33000 Volt (V)
  • Cooling Type ONAN
  • Capacity 250 TO 7500 KVA
  • Low Voltage 415 - 900 AS PER CUSTOMER REQUIREMENT Volt (V)
  • Product Type Electrical Transformer
  • Supply Ability : 25 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 600000.00 - 4000000.00 INR/Unit
  • 600000 INR/Unit
  • 1 Unit

Product Specifications

  • Forging Plants
  • Copper
  • 415 - 900 AS PER CUSTOMER REQUIREMENT Volt (V)
  • 50 Hertz (HZ)
  • Copper
  • Three Phase
  • ONAN
  • 250 TO 7500 KVA
  • AS PER IS2026
  • Upto 33000 Volt (V)
  • Customize
  • Copper Core
  • Electrical Transformer
  • Up to 33000 Volt (V)

Trade Information

  • Cash in Advance (CID), Letter of Credit (L/C)
  • 25 Unit Per Month
  • 30-45 Days
  • Asia, Middle East, Africa
  • All India

Product Description

Electric Arc Furnace Transformer that presented by us is designed to be utilized for providing electric energy to the arc furnaces. This kind of transformer helps in converting the electric energy into heat energy. It comes with a non-resettable device to detect internal faults of transformer, utilizes pressure relief, and offers an external indication which is visible from the ground. Engineered and developed by proficient engineers with developed electrical technology, Electric Arc Furnace Transformer can be availed in varied models, powers and specifications at negotiable prices.

Design Capacities:

  • Primary Voltage: 33000/22000/11000.
  • Ratings: 250kVA to 2500kVA.
  • Secondary Voltage: 400 - 500.
  • Built to customer specifications in complete compliance with IS 2026 Energy Efficiency Standards.

Standard Accessories And Features:

  • DPC copper.
  • Pressure relief device.
  • CRGO core./ Amorphous Core.
  • HV & LV Bushings.
  • Conservator Tank.
  • Grounding Bracket.
  • Insulation material.
  • OTI/WTI indicator.
  • Buchholz relay.
  • Power oil.

Optional Accessories And Features:

Transformers may be offered with the various optional products if specified by the purchaser.

  • Clamp type low voltage terminals.
  • Surge arrester mounting provision.
  • Stud type or spade type low voltage bushings.
  • High voltage of circuit taps.
  • Cable Box.
  • Additional tests may be requested by the purchaser and shall be performed.
  • Purchaser specified impedance limits.
  • Alternative protection devices, specified by the purchaser.
  • Purchaser specified maximum mass.
Standard Power Transformer Tests:
  • Ratio and Polarity Measurements.
  • Impedance and Load Losses Measurements.
  • Winding Resistance Measurements.
  • Exciting Current and No Load Losses Measurement.
  • Induced Voltage Test.
  • AC Dielectric Test.
  • Core Ground Test.
  • Magnetic Balance Test.
  • Oil BDV Test.
  • Vector Group Test.
  • Insulation Resistance Test.
  • Capacitance and Tan-Delta Test.
Optional Power Transformer Tests:
  • Sound Level.
  • Temperature Rise.
  • Radio Influence Voltage.
  • Basic Insulation Impulse Level.
  • Partial Discharges (Corona).
  • Short circuit test.
  • SFRA Test.
  • Polarity and ratio test of bushing CT.
  • Knee Point Voltage of bushing CT.
